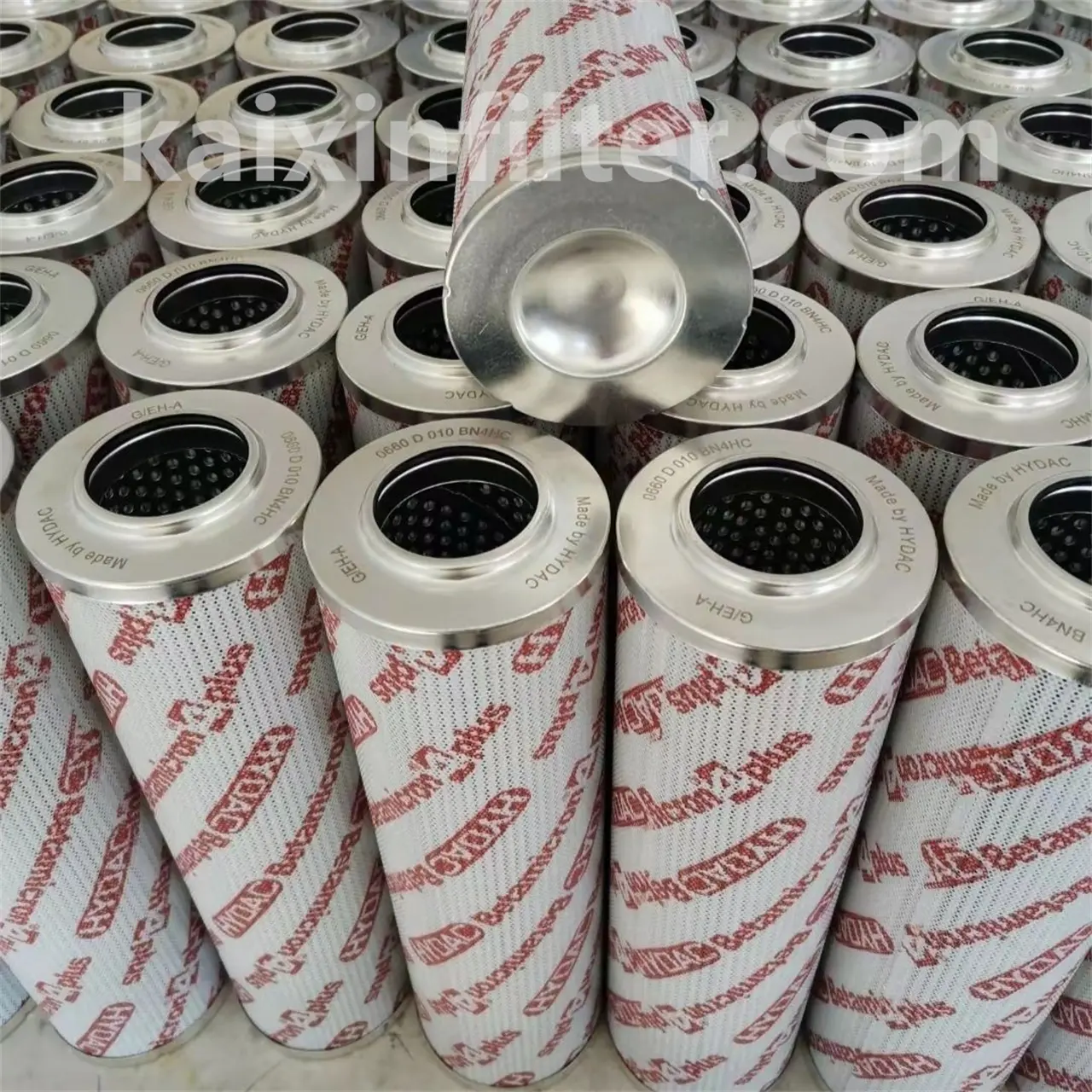

0660d010bn4hc hydac hydraulic filter Aftermarket Hydraulic Filter
First and foremost, the 0660d010bn4hc hydac hydraulic filter acts as a reliable aftermarket hydraulic filter for heavy construction machinery. Moreover, this 0660D010BN4HC replacement hydraulic filter delivers steady protection for drilling and engineering equipment. In addition, it works perfectly as a cost-effective solution without relying on original factory parts. Therefore, it has become a common choice for daily workshop and fleet maintenance work. Meanwhile, the following content explains its specifications, filtration principle and full machine compatibility clearly.
0660d010bn4hc hydac filter Core Specifications
To begin with, accurate physical sizes support fast installation inside standard filter housings. Furthermore, every dimension matches common industry mounting standards perfectly for direct replacement:
- Outer Diameter: 92.1 mm (3.63 inch)
- Inner Diameter: 48.1 mm (1.89 inch)
- Gasket ID: 46.4 mm (1.83 inch)
- Overall Length: 329.5 mm (12.97 inch)
- Efficiency Beta 1000: 12 micron
Besides, these precise measurements help users finish replacement without extra cutting or modification. As a result, installation time becomes shorter during on-site service tasks.
Working Principle of 0660D010BN4HC
In general, clean hydraulic fluid directly decides the stability of heavy machinery operation. Additionally, the 0660D010BN4HC high efficiency hydraulic filter follows a complete circulation process to keep oil clean all the time.
Hydraulic Fluid Flow Path
At first, contaminated hydraulic oil flows out from the main system circuit. Next, the liquid enters the filter housing under normal working pressure. Then, it passes through the outer layer of the pleated filter structure slowly. After that, fine particles get trapped inside the multi-layer fiber media. Finally, purified oil flows back to protect pumps, valves and internal cylinder components.
Multi‑Layer Filtration Mechanism
On one hand, large debris such as metal scraps and dust stay blocked on the outer surface. On the other hand, tiny particles down to 12 micron are captured deep inside the media. For this reason, the filter reaches Beta 1000 filtration performance steadily. What is more, the high-quality fiber material improves overall dirt holding capacity greatly. Consequently, service intervals can be extended for long working cycles.
Structural Stability Under Pressure
Even though construction sites bring strong vibration and pressure changes, this filter keeps stable shape all day long. Hence, it avoids media deformation during high-load operation. Also, the sealed end design prevents oil bypass and ensures full filtration efficiency continuously.
Equipment Compatibility hydac hydraulic filter
Apart from general hydraulic protection functions, this filter fits many mainstream engineering brands widely. Similarly, it covers drilling rigs, excavators and foundation construction machines for daily use:
- CASAGRANDE: B 175 XP, B 180 HD, B 300 XP
- COMACCHIO: MC 900 P
- GEOTEC: ROTOMAX XL
- JCB: JS 500
- LIEBHERR: LHM 150
- MOREAU: COBRA, VOLTRA 6.24
In particular, the 0660D010BN4HC compatible hydraulic filter performs well in foundation drilling and heavy construction environments.
Advantages & Maintenance Guidance 0660d010bn4hc hydac filter
Above all, choosing this aftermarket model helps reduce long-term equipment maintenance costs. Firstly, its 12 micron high precision protects delicate hydraulic parts from wear. Secondly, durable material adapts to harsh outdoor working conditions easily. Thirdly, standard size allows simple replacement for all matching machine models. In conclusion, it offers stable quality and wide compatibility for professional machinery maintenance teams.
