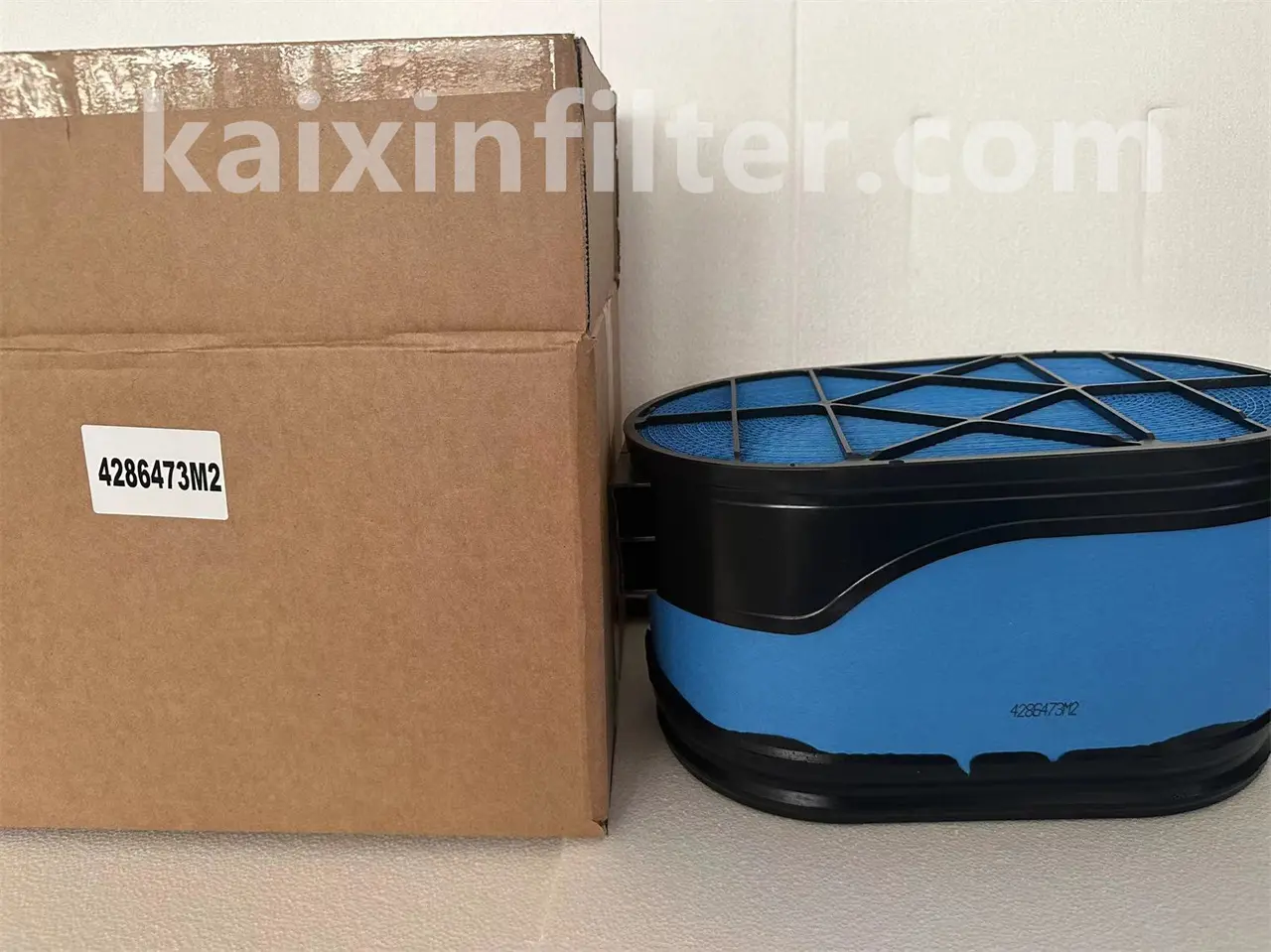

4286473M2 Primary Air Filter (Revised English Version)
4286473M2 AGCO Air Filter Massey Ferguson. Specifically, it uses Powercore/channel-type filtration technology. During operation, air passes through porous filter media to trap contaminants and deliver clean air to the engine. As a result, this filter provides stable, long-lasting protection for heavy-duty agricultural machinery’s air filtration systems.
I. Core Working Principle (Channel-Type / Powercore)
Intake and Distribution
Dust-laden air first enters the filter inlet. Subsequently, it distributes evenly across a flat/oval channel array (Powercore structure). Meanwhile, air flows axially along the channels. In turn, this design ensures low turbulence and stable intake efficiency in heavy-duty engine intake systems, thereby laying a foundation for efficient filtration.
Filtration and Capture (Core Function)
Air must pass through multi-layer composite filter media, usually a mix of cellulose and synthetic fibers. Specifically, inertial impact and interception trap large particles—such as dust, sand, and crop straw—directly on the media’s surface or outer layer, which effectively reduces dust loads in typical agricultural work environments.
Additionally, inner-layer fibers catch small and medium-sized particles through diffusion and electrostatic adsorption. Furthermore, this process further improves the cleanliness of air entering diesel engines, and the filter boasts a filtration efficiency of up to 99.95%.
Consequently, it ensures clean air reaches the engine, protecting critical precision components like pistons, cylinder liners, and valves. Ultimately, this extends the service life of heavy machinery.
Clean Air Outlet
Filtered clean air converges at the opposite end of the channels. It then flows through the outlet into the engine intake system, supplying clean oxygen for combustion. For instance, for equipment like Massey Ferguson tractors, it maintains stable power output and reasonable fuel consumption.
Contaminant Retention and Dust Holding Capacity
The filter traps contaminants on the media’s outer side or near channel inlets, forming a dust layer. Importantly, it has ample dust holding capacity to prevent rapid clogging during extended use, thus sustaining reliable filtration during long field operations and reducing maintenance costs from frequent filter changes.
II. Structural and Technical Features (4286473M2 AGCO Air Filter)
First, the filter is a primary air filter. Typically, it often pairs with a secondary safety filter to form a two-stage air filtration system, which ultimately enhances operational safety for all AGCO agricultural machinery.
Second, it features an obround (oval) Powercore with a flat channel design. Compared to conventional cylindrical filters, it offers a larger filtration area, lower pressure drop, and higher dust holding capacity, which perfectly matches the installation space and intake needs of 6400/7400 series tractors.
In terms of dimensions, it is approximately 330 mm (13 inches) long, 204 mm (8 inches) wide, and 187 mm (7.35 inches) high. Moreover, its specifications align precisely with the mounting positions of original AGCO air filters.
Regarding applications, it fits Massey Ferguson 6400/7400 series tractors and AGCO RT series agricultural machinery, and it is widely used in grain harvesting, corn seeding, deep soil tillage, and other agricultural operations.
Furthermore, it has several replacement part numbers, including Fleetguard AF27876, Donaldson P784643, Mann CP34360, and Baldwin CA5514. These options, in turn, provide diversity for the agricultural machinery aftermarket.
III. Operating Flow (4286473M2 AGCO Air Filter)
When the engine runs, it creates negative pressure that draws ambient air into the air filter housing. Then, the heavy machinery air filter assembly conducts preliminary flow guidance and pressure equalization.
Next, air passes through the 4286473M2 primary filter, which traps 99.95% of contaminants, thereby achieving over 99% engine intake air cleanliness.
After that, clean air moves to the secondary safety filter for further filtration, which forms a dual protective barrier in high-dust agricultural environments.
Subsequently, the purified air enters the cylinders through the intake manifold to support fuel combustion, which improves the agricultural machinery’s power output efficiency and fuel economy.
Over time, dust accumulates in the filter media, increasing intake resistance. Therefore, replace the filter when it reaches the pressure differential threshold, and set a replacement schedule based on environmental dust concentration and the equipment’s user manual.
IV. Key Advantages（4286473M2 AGCO Air Filter）
First, it has high filtration efficiency. Specifically, it protects precision engine components like pistons, cylinder liners, and valves, which reduces the need for heavy machinery overhauls and extends the machine’s overall service life.
Second, it features low pressure drop. As a result, this minimizes intake resistance, boosting engine power and fuel economy while maintaining stable performance during prolonged continuous operation.
Third, it has a high dust holding capacity. Consequently, this extends replacement intervals, lowers maintenance costs, and meets the demands of high-frequency agricultural machinery use.
Finally, it has a compact design.
