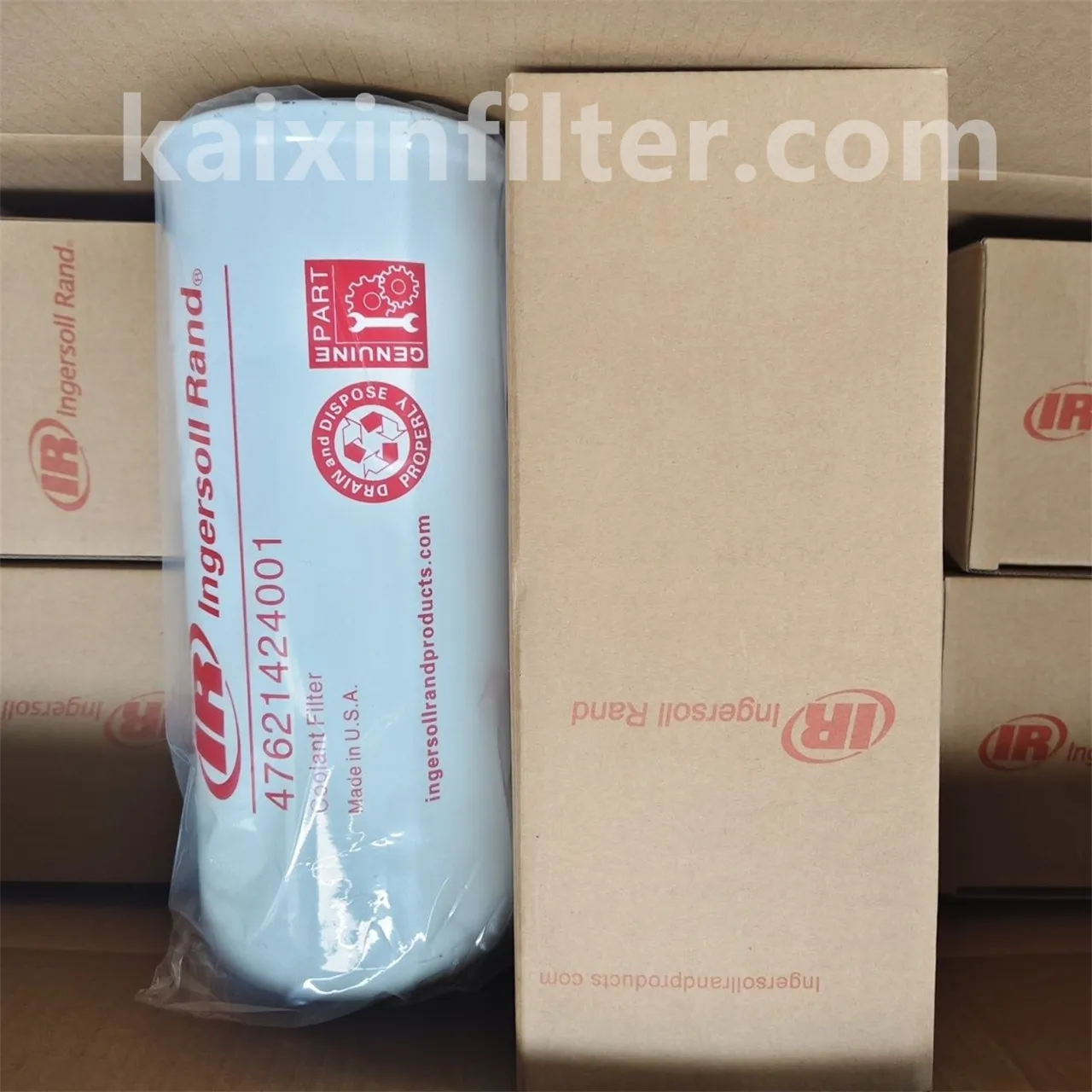

47621424001 Aftermarket Ingersoll Rand Hydraulic Filter
First and foremost, the 47621424001 is a high-quality aftermarket hydraulic filter specially designed for Ingersoll Rand RM185VSD compressors. Moreover, this reliable 47621424001 replacement hydraulic filter supports stable operation of air compressors and heavy machinery in industrial, construction and agricultural fields without factory original restrictions. In addition, it serves as a cost-effective 47621424001 hydraulic filter cartridge for fleet maintenance teams, repair workshops and equipment operators.
Core Dimension Specifications
To begin with, precise physical sizes allow seamless installation inside standard filter housings for heavy machinery, making it an ideal 47621424001 aftermarket filter for direct swap without extra modification:
-
D1 Outer Diameter: 121.00 mm
-
D2 Inner Diameter: 117.00 mm
-
D3 Top Diameter: 86.00 mm
-
D7 Thread Specification: 1″3/4-12UNF
-
Overall Height H1: 298.00 mm
-
Weight: 2.320 kg
-
Volume: 0.005231 m³
Additionally, these standard measurements ensure an exact fit and avoid modification during routine part replacement, a key advantage of this 47621424001 hydraulic cartridge. Its 1″3/4-12UNF thread design also ensures tight sealing and stable oil flow, matching the performance of premium hydraulic filters for industrial equipment.
Working Principle of 47621424001 Hydraulic Filter
In general, clean hydraulic oil keeps system pressure stable and protects core moving parts of compressors and heavy machinery. Meanwhile, this 47621424001 replacement filter follows a smooth filtration cycle tailored for Ingersoll Rand RM185VSD compressors and other industrial equipment, matching the performance of premium 47621424001 compressor hydraulic filter options. It adopts multi-layer depth filtration technology, which can effectively remove impurities and ensure the cleanliness of hydraulic oil, meeting the ISO 4527 standard for hydraulic filter efficiency.
47621424001 Ingersoll RAND Hydraulic Oil Circulation Flow
At first, contaminated hydraulic oil flows out from the main system circuit of compressors or heavy machinery. Next, it enters the filter housing and passes through the outer layer of the cartridge structure. After that, oil slowly penetrates the multi-layer synthetic filter media for deep cleaning— a feature that makes this 47621424001 high-efficiency hydraulic filter ideal for harsh industrial and construction environments. Finally, purified fluid flows back to protect pumps, control valves and hydraulic cylinders inside the equipment, ensuring stable operation of Ingersoll Rand RM185VSD compressors and other models.
Multi-Layer Contaminant Filtration
On one hand, large debris like metal shavings, dust and rubber particles settles on the outer surface for quick blocking. On the other hand, tiny fine particles (down to 10μm) get trapped deep inside the dense fiber layers, achieving a filtration efficiency of over 99% and meeting the NAS 8-9 level cleanliness requirement. As a result, this filtering design maintains stable oil cleanliness and reduces internal wear during long working hours, making it a reliable 47621424001 industrial hydraulic filter for heavy-duty use. The multi-layer filter media also has strong dirt-holding capacity, which can extend the service life of the filter.
High Pressure Structural Stability
Since Ingersoll Rand RM185VSD compressors and heavy machinery run under strong vibration and high pressure (up to 7-10bar for RM185VSD compressors), this filter uses reinforced support materials and a sturdy structure. Therefore, it keeps a steady shape and consistent flow performance even in tough industrial environments, outperforming many ordinary 47621424001 replacement cartridge options. It also has a built-in pressure difference monitoring design, which can remind users to replace the filter in time when it is blocked, ensuring the safety of the hydraulic system.
47621424001 Ingersoll RAND Equipment Compatibility
Apart from universal hydraulic performance, this aftermarket cartridge matches a wide range of industrial, construction, agricultural and mining equipment models. In addition, it serves perfectly for regular equipment maintenance schedules as a 47621424001 compatible hydraulic filter for Ingersoll Rand and other brand machines, especially suitable for Ingersoll Rand RM185VSD 185kW variable frequency screw air compressors:
-
Ingersoll Rand: 9.105RM 185 VSD (RM185VSD compressors)
-
PRONAR RECYCLING: MPB 18.47
-
SAME: 190 IRON, 3210 IRON, 220 IRON, IRON 3
-
TATOMA: MUS 12, MVS 14
-
TIMBERJACK: 360 C, 380 C, 460 C
-
TWIN DISC: DIVERS
-
LAMBORGHINI: 150 CHAMPION
-
LIEBHERR: A 918 Compact Litronic Gen6, LR 624 LITRONIC, LR 634 LITRONIC
-
Equipment Compatibility 47621424001 Ingersoll RAND
-
MAC CORMICK: X 7.621 VT-Drive, X 7.624 VT-Drive, X 7.670 VT-Drive
-
CASE: 1188, 1188521, D588621, D621, D668, B688, B-P688, P695, SUPER M695, SUPER M788, 788, CK788,
-
CATERPILLAR: 631 G, 950 H, 962 H, 963 C, 963 C, 963 C, 972 H, 973 H, CD 6 N XL, TH 103, TH 103, TH 62, TH 62, ,
-
CHALLENGER: 45, 55, 65, E75, E85, D85, EMT 85, 1MT 85, 6MT 86, 2MT 86, 7
-
CLARK: 45 C, 475 C
-
DEMAG: AC 35-1, AC 55, AC 60-3
-
DEUTZ: 710 AGROTRON, L720 AGROTRON L
-
DITCH WITCH: JT 4010 MACH 1, JT 4020 ALL TERRAIN, JT 4020 MACH 1
-
FIAT: L 60, L 65, L 75, L 85, L 95
-
FIAT HITACHI: FB 100, FB 100.2, FB 110, FB 200, FB 200.2, FB 200.2 4WS, FB 90
-
FIAT KOBELCO: T 13
-
FORD: 555 C, 555 D, 575 D, 655 D, 655 E, 675 D, 675 E
-
FORD AGRI: 8670, 8770, 8870, 8970
-
FURUKAWA: HCR 1200 ED
-
GEHL: SL 7600, SL 7800
It works well as a cost-effective hydraulic filter solution for compressors, construction machinery, agricultural equipment.
mining machinery maintenance, acting as a practical 47621424001 mining hydraulic filter and 47621424001 agricultural hydraulic filter for daily use.
Practical Advantages & Maintenance Tips 47621424001 Ingersoll RAND filter
For fleet owners and repair teams, choosing this aftermarket filter brings clear long-term benefits. First, stable filtration quality (99% efficiency at 10μm) lowers wear risks and extends the service life of your Ingersoll Rand RM185VSD compressors and other equipment, a key benefit of this 47621424001 heavy-duty hydraulic filter. Second, its rugged structure adapts to harsh industrial, construction and mining conditions and lengthens the interval between replacements. Third, the precise thread and dimension design ensures leak-free installation, reducing the risk of hydraulic oil leakage. Lastly, simple installation steps save plenty of time during on-site part service, making it a user-friendly 47621424001 aftermarket hydraulic cartridge.
In terms of maintenance, it is recommended to follow the equipment manufacturer’s service interval. For Ingersoll Rand RM185VSD compressors, regular inspection and replacement are recommended according to the operating hours to avoid filter clogging and system pressure loss. At the same time, check the pressure difference of the filter regularly. When the pressure difference exceeds 0.35MPa, replace the filter in time to ensure the normal operation of the hydraulic system.
