Working Principle of Donaldson P505957 Fuel Filter

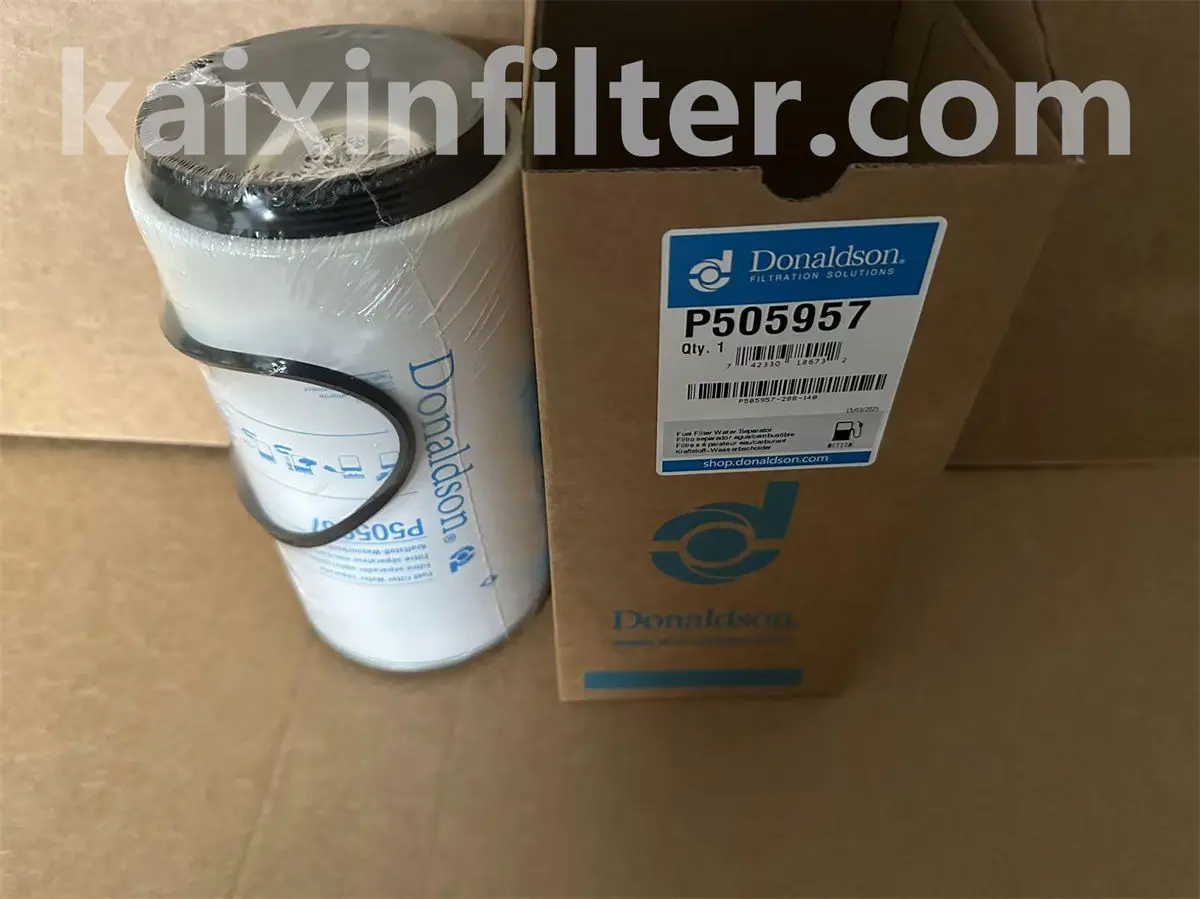

The Donaldson P505957 is a spin-on fuel water separator. It operates synergistically through multi-stage physical interception, coalescence water separation, and gravity sedimentation. Moreover, it meets the strict fuel cleanliness requirements of high-pressure common rail engines. In addition, it accurately removes particulate contaminants and efficiently separates free water. As a result, it protects fuel pumps and injectors from wear and corrosion failure, thus ensuring stable engine operation.
1. Core Structure (Foundation of Working Logic)
Designed as an integrated spin-on unit, the Donaldson P505957 features a clearly layered internal structure with rational layout. Each component cooperates to achieve dual functions of filtration and water separation. Specific structures are as follows:
1.1 Housing & Ports
It adopts a high-strength metal spin-on housing with excellent sealing and impact resistance. Meanwhile, the top single-thread central port serves as both oil outlet and mounting position for quick installation and removal. Furthermore, a side inlet directly connects to the engine fuel line. Besides, the bottom integrates a Twist&Drain™ drain valve and reserves a WIF (Water In Fuel) sensor port for water accumulation monitoring.
1.2 Composite Filter Media Layer
It applies a multi-layer composite media structure. To begin with, the outer coarse fiber layer initially intercepts large particles. Next, the middle oleophilic-hydrophobic coalescence media acts as the core water separation component. Finally, the inner nano fine fiber layer deeply traps tiny particles. The gradient cooperation of three media balances filtration efficiency and service life effectively.
1.3 Internal Flow Channels（Donaldson P505957）
With directional flow design, the fuel path is clear: Inlet → Annular cavity between housing and media → Filter media → Central collection tube → Outlet. Additionally, an independent water accumulation chamber at the bottom stores separated water, which is completely isolated from fuel channels to prevent water backflow.
1.4 Auxiliary Components
Built-in baffles guide fuel to pass through media evenly, avoiding insufficient filtration or media damage caused by excessive local flow speed. Moreover, the drain valve integrates automatic air venting, eliminating extra vent operations during drainage and simplifying maintenance procedures greatly.
2. Complete Working Process (Donaldson P505957)
The Donaldson P505957 working process includes four core stages. All stages rely on physical effects without chemical reactions, thus preserving original fuel properties perfectly. Specific procedures are as follows:
2.1 Fuel Intake & Pre-Diversion
Under the suction of the engine fuel transfer pump, unfiltered fuel flows into the annular cavity from the side inlet. Since the cavity volume is larger than the inlet pipe diameter, fuel speed drops instantly. Meanwhile, large contaminants such as rust, welding slag, sediment and dust settle at the cavity bottom by gravity for pre-filtration. Furthermore, it prevents high-speed fuel impact on media to extend service life efficiently.
2.2 Multi-Stage Particle Interception (Core of Physical Filtration)
After pre-diversion, fuel penetrates multi-layer composite media from outside to inside under pressure, achieving thorough contaminant removal via gradient interception:
-
Coarse Fiber Layer: Prioritizes intercepting particles ≥14–20μm with 95%–99% removal rate. It effectively blocks large contaminants from entering inner media to avoid rapid clogging.
-
Nano Fine Media Layer: Further traps tiny particles of 3–14μm such as fine metal powder and colloidal impurities with 50% removal rate at 3μm. It fully satisfies strict fuel cleanliness standards of high-pressure common rail engines, preventing injector wear and reduced injection accuracy caused by tiny particles.
All intercepted contaminants are firmly adsorbed in media fiber gaps without secondary pollution from fuel backflow, realizing one-pass deep retention filtration effect completely.
2.3 Coalescence Water Separation (Core Function)
Fuel passing through media may still contain free water and micro emulsified droplets. This water is forcibly separated by coalescence media, which forms the core advantage of Donaldson P505957 as a water separator:
-
The coalescence media has oleophilic-hydrophobic surface property. Therefore, fuel penetrates smoothly while water molecules cannot wet the surface and get adsorbed and gathered by media fibers instead.
-
Tiny water droplets collide and merge continuously on media surface, gradually forming large droplets ≥50μm. Since water density is higher than fuel, large droplets detach from media and settle into the bottom water chamber by gravity for thorough oil-water separation.
-
After coalescence separation, free water content in fuel drops to an extremely low level. Thus, it effectively prevents corrosion, cavitation and lubrication failure wear of precision parts like fuel pumps and injectors.
2.4 Clean Fuel Output & Water Management
Clean fuel after multi-stage filtration and water separation gathers in the central collection tube. Then it is continuously delivered to engine fuel pumps and injectors through the top threaded outlet, providing pure and stable fuel for smooth engine power output reliably.
Water stored in the accumulation chamber can be quickly drained via the bottom Twist&Drain™ valve. Users only need to rotate the knob without disassembling the filter. Moreover, the reserved WIF sensor port connects to a sensor for real-time water level monitoring. When water reaches the preset threshold, it sends timely reminders to avoid system faults caused by excessive water inhalation effectively.
3. Key Technical Principles & Advantages of Donaldson P505957 Fuel Water Separator
-
Gradient Filtration Principle: Adopts coarse filtration → coalescence → fine filtration layered structure to intercept particles from large to small gradually. It ensures filtration accuracy while avoiding rapid clogging from excessive single-media load, extending element life and reducing maintenance costs significantly for high-pressure common rail engine equipment.
-
Coalescence Separation Principle: Utilizes surface tension difference of oleophilic-hydrophobic materials to achieve efficient oil-water separation without complex structures like centrifugal force. Featuring simple structure, stable operation and high separation efficiency, it adapts to various working condition water separation needs of construction machinery and commercial vehicles perfectly.
-
Low Flow Resistance Design: High-porosity media cooperates with annular channels and central collection tube. While guaranteeing filtration accuracy and water separation effect, it minimizes fuel flow resistance without affecting engine fuel supply efficiency or causing power drop from insufficient fuel supply for generator sets and heavy-duty vehicles.
-
Anti-Secondary Pollution Design: Media fibers apply resin-free bonding technology. Intercepted contaminants adhere firmly inside media without detachment from fuel flow or vibration, ensuring continuous downstream fuel cleanliness and thorough protection of engine precision parts reliably.
4. Working Limits & Maintenance Logic of Donaldson P505957 Spin-On Fuel Filter
Donaldson P505957 working efficiency declines gradually with service time. When media contaminant interception reaches saturation or water accumulation is excessive, fuel flow resistance rises and water separation efficiency drops, even affecting engine fuel supply. At this time, replace elements regularly according to usage cycles and drain accumulated water periodically strictly to maintain optimal performance.
Compatible with diesel and biodiesel, this Donaldson P505957 spin-on fuel water separator is widely applied in high-pressure common rail engine equipment such as construction machinery, commercial vehicles and generator sets. It stably provides dual protection of particle filtration and water separation to ensure long-term stable equipment operation reliably, reducing equipment maintenance frequency and cost.
