FS1280 Fleetguard Fuel Filter: Working Principle & Complete Guide
Core Technical Specifications (FS1280)

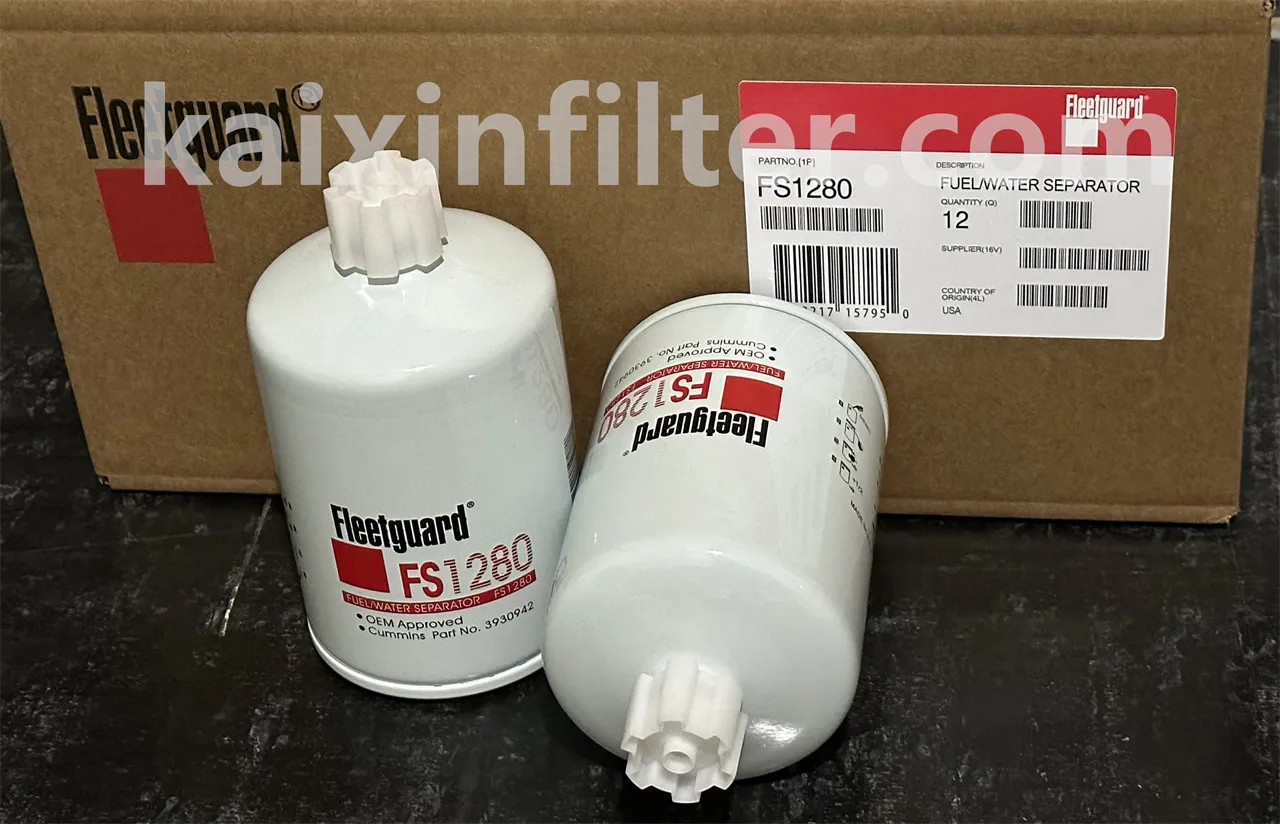

FS1280 Fleetguard fuel filter
- Largest Outer Diameter: 93.73 mm (3.69 inch)
- Seam Outer Diameter: 93.47 mm (3.68 inch)
- Gasket Outer Diameter: 71.88 mm (2.83 inch)
- Gasket Inner Diameter: 62.48 mm (2.46 inch)
- Overall Height: 164.85 mm (6.49 inch)
- Thread Size: 13/16-18 UNS-2B
- Filtration Efficiency: 96% at 20 micron (tested to SAE J1985 standard)
- Water Separation Efficiency: 90% for both emulsified and free water
- Filter Style: Spin-on, fuel water separator
- Filter Media: High-quality cellulose (Ahlstrom filtration paper)
- Weight: Optimized for easy installation and handling
First and foremost, its spin-on design allows quick, tool-free installation, saving valuable maintenance time on busy job sites. Consequently, this FS1280 fuel water separator is widely favored by maintenance teams for its convenience and reliable performance. Additionally, installers must fit the furnished O-ring on the post to ensure a tight seal and prevent fuel leakage during operation.
Working Principle of FS1280 Fleetguard Fuel Filter
In general, clean diesel fuel is critical for protecting engine injectors, fuel pumps, and other precision components from wear and damage. Moreover, the FS1280 high-efficiency fuel filter uses a dual-function design—combining particle filtration and water separation—to ensure optimal fuel cleanliness. Unlike low-quality filters, it maintains stable performance even in harsh operating conditions, thereby extending engine service life and reducing downtime. Furthermore, its working principle revolves around three key stages: fuel circulation, particle filtration, and water separation, all of which work seamlessly together to deliver clean, dry fuel to the engine.
Fuel Circulation & Filtration Flow Path
At first, contaminated diesel fuel is pumped from the fuel tank into the FS1280 filter housing under system pressure. Next, the fuel flows from the outside inward through the spin-on filter’s outer casing, entering the pleated cellulose media layer. Then, large impurities—such as metal shavings, rust, and dust—are immediately intercepted on the media’s surface, preventing them from entering the engine. After that, finer particles (down to 20 microns) are trapped deep within the multi-layer cellulose structure, achieving 96% filtration efficiency as tested to SAE J1985 standards. Finally, purified, dry fuel passes through the central core tube and flows back into the fuel system, delivering clean fuel to the engine’s injectors and fuel pumps.
Particle Contaminant Removal Mechanism
The FS1280 uses surface interception to block large debris before it reaches the media’s inner layers. For this reason, the filter maintains consistent 96% filtration efficiency, which is crucial for protecting precision engine components. What is more, the high-quality cellulose media (Ahlstrom filtration paper) has excellent dirt-holding capacity, extending the filter’s service interval and reducing replacement frequency. Consequently, this lowers overall maintenance costs for fleet owners and equipment operators.
Water Separation Working Principle
Water can enter the fuel system through condensation in the fuel tank or contaminated fuel sources, which can cause corrosion, fuel system icing, and potential engine damage. Luckily, the FS1280 fuel water separator is specifically designed to address this issue, achieving 90% efficiency for removing both emulsified and free water. It uses a combination of gravity and centrifugal force: as fuel flows through the filter, spinning motion inside the housing pushes heavier water molecules outward to the separator walls. Also, the filter’s hydrophobic media repels water while allowing fuel to pass through, further enhancing water separation performance. Besides, collected water settles at the bottom of the filter housing, and users can drain it periodically to maintain optimal functionality.
Structural Stability & Leak-Proof Design
Heavy-duty engines and equipment operate under high pressure and frequent vibration, but the FS1280 heavy-duty fuel filter maintains strong structural stability. Hence, its reinforced outer casing and internal support cage prevent media collapse, even under normal operating pressures. Also, the filter features a high-quality O-ring gasket that ensures a tight, leak-free fit when installed correctly, avoiding fuel bypass and maintaining full filtration efficiency. Additionally, its optimized weight and dimensions make it easy to handle and install, further adding to its practicality for on-site maintenance.
Cross Reference & Equipment Compatibility
Apart from being a direct replacement for Fleetguard FS1280, this filter is also cross-compatible with multiple OEM part numbers from leading brands. Similarly, it fits a wide range of heavy-duty engines and equipment, making it a versatile choice for maintenance teams.
FS1280 Fleetguard Filter Cross Reference Part Numbers
- Cummins: 3890706, 3903410, 3930942
- Donaldson: P551329
- Baldwin: BF1280, BF787
- Volvo: 36846
- Fleetguard: FS5285
- Komatsu: 6732-71-6120
- AGCO: 3903410, 72501531, AG709936
Applicable Equipment Models & Engines
The FS1280 compatible fuel filter is widely used in Cummins engines and various equipment across construction, agriculture, and industrial sectors, including:
- Cummins Engines: 4BT 3.9, 6BT 5.9, 6BTA 5.9, 6CT 8.3, 6CTA 8.3
- Construction Equipment: ABG SD70D, ABG Titan 465, ABG CR70, CASE 1088, 1088C, 1180, 1280, VOLVO EC140LC, EC150LC, EC210LC
- Agricultural Machinery: AG Chem Equipment 1703, 663 Ro-Gator, 544 Ro-Gator, John Deere Tractor, AGCO Tractors DT160, DT180, DT200
- Other Equipment: Hyundai 225-7 Excavator, Vermeer Mack Truck, Sandvik LH 410, Terex Construction Machinery
FS1280 Fuel Filter Key Advantages & Maintenance Tips
Key Advantages
Above all, this aftermarket FS1280 filter offers stable performance at a fraction of the cost of original parts. Firstly, its 96% filtration efficiency and 90% water separation efficiency effectively protect engine components from wear and damage. Secondly, its durable structure adapts to harsh working conditions, extending service intervals and reducing replacement frequency. Thirdly, the spin-on design enables quick, tool-free installation, saving maintenance time on busy job sites. In addition, the high dirt-holding capacity of the cellulose media further lowers operational costs. In conclusion, it is a practical and cost-effective choice for long-term fleet and equipment maintenance.
Maintenance Tips FS1280 Fleetguard Fuel Filter
In terms of maintenance, it is recommended to follow the equipment manufacturer’s service interval. For most heavy-duty engines, replace the FS1280 replacement fuel filter every 500-1000 operating hours, or as specified in the equipment manual. Also, check the filter for leaks after installation to ensure a tight seal. Additionally, regularly drain collected water from the filter’s bottom chamber to maintain optimal water separation performance. If the filter becomes clogged (indicated by a drop in fuel pressure), replace it immediately to avoid engine damage.
