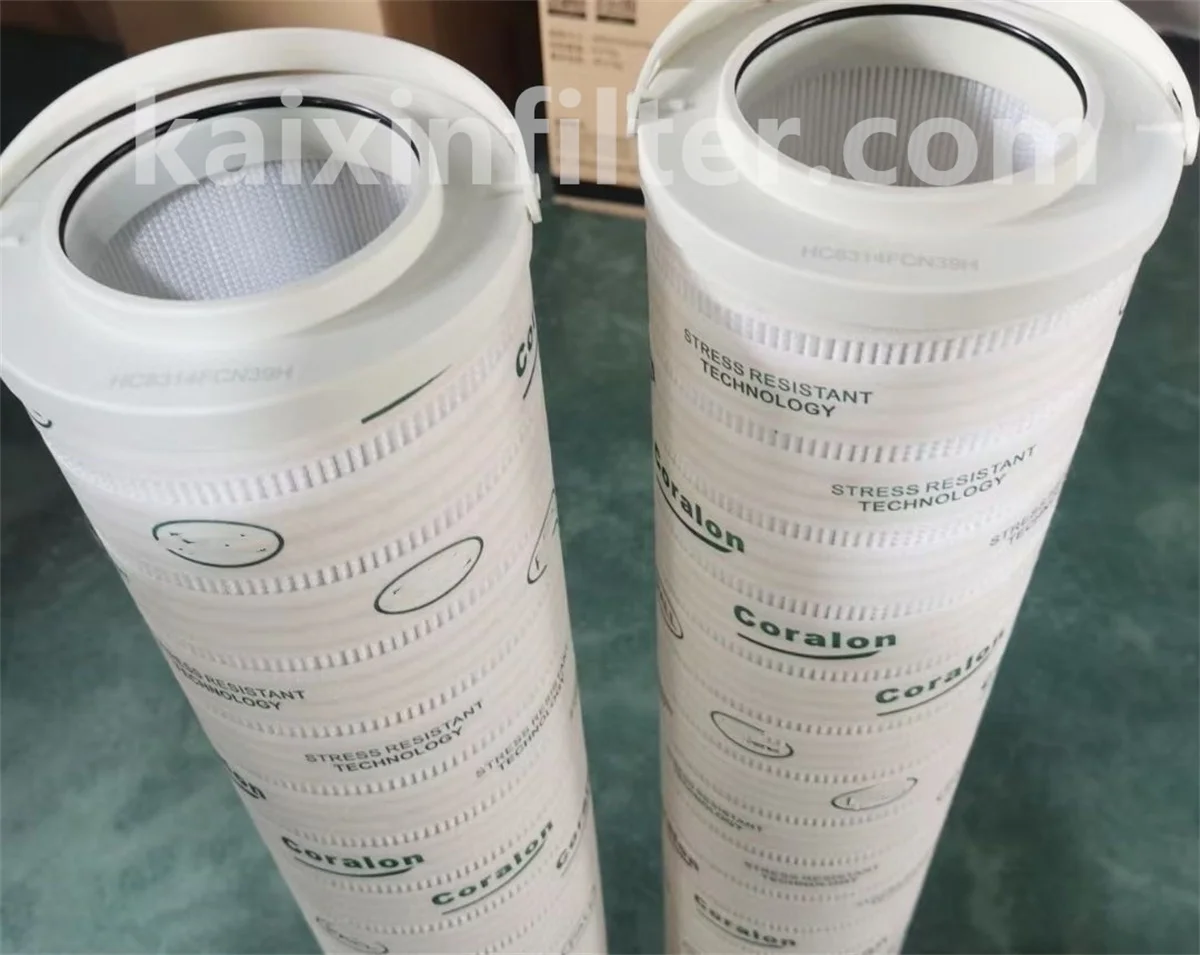

Compatible Equipment (Pall HC8314FKP39H filter)
First and foremost, the Pall HC8314FKP39H filter is a high-precision separation filter from Pall’s Coralon series, belonging to the high-pressure hydraulic filtration category, designed for strict contamination control in industrial scenarios. It is widely used in the following equipment:
1. Industrial Hydraulic Stations
It integrates into the hydraulic circuits of CNC machine tools, injection molding machines, and stamping equipment. It filters metal shavings, wear particles, and impurities in hydraulic oil, preventing valve jamming or cylinder scratches, and ensuring stable operation of the hydraulic system.
2. Heavy Construction Machinery
It is suitable for the hydraulic systems of excavators, cranes, rotary drilling rigs, and loaders. It pairs perfectly with high-pressure piston pumps (such as Rexroth A4VG series) to reduce wear on pump bodies and valve cores caused by contaminated oil.
3. Wind Power Equipment
It is applied in the pitch and yaw hydraulic control systems of wind turbines. It maintains oil cleanliness in outdoor dusty environments, avoiding equipment failures caused by oil pollution.
4. Petrochemical & Energy Equipment
It is used in the hydraulic systems of offshore drilling platforms, petrochemical reaction kettles, and gas turbine lubrication systems, handling high-pressure and high-purity filtration needs to protect key components from wear.
Working Principle of Pall HC8314FKP39H
The HC8314FKP39H uses Pall’s high-performance stress-resistant glass fiber media, following a clear “coarse-to-fine” staged filtration process:
First, hydraulic oil or fluid enters the outer coarse filtration layer. This layer traps large contaminants such as metal chips and welding slag to prevent damage to the inner precision filter layer.
Subsequently, the fluid flows into the inner high-precision glass fiber layer. With a filtration accuracy of 5 microns, it captures tiny particles and oil mist that the coarse layer fails to remove, ensuring the fluid meets high-purity requirements.
Moreover, its unique Stress Resistant Technology prevents filter media deformation under high pressure or pulsating flow, avoiding filter rupture and ensuring continuous and stable filtration performance.
If the filter becomes clogged due to long-term use, the built-in bypass valve (optional) will automatically open to maintain the normal operation of the hydraulic system and prevent equipment shutdown caused by oil cut-off.
Key Benefits HC8314FKP39H Pall HC8314FKP39H filter
First, it extends the service life of hydraulic components such as pumps, valves, and cylinders by reducing contamination-related wear.
Next, it maintains the stability of high-pressure hydraulic systems, reducing the frequency of equipment failures and unplanned downtime.
Additionally, it meets industrial high-purity requirements, adapting to harsh working environments such as offshore, high-dust, and high-humidity conditions.
Product Specifications
Outer Diameter: 152.4 mm (6 inch)
Inner Diameter: 98.5 mm (3.88 inch)
Overall Length: 923.9 mm (36.37 inch)
Filtration Efficiency (Beta 1000): 5 micron
Collapse Burst: 10.3 bar (149 psi)
Weight: 2.420 kg
