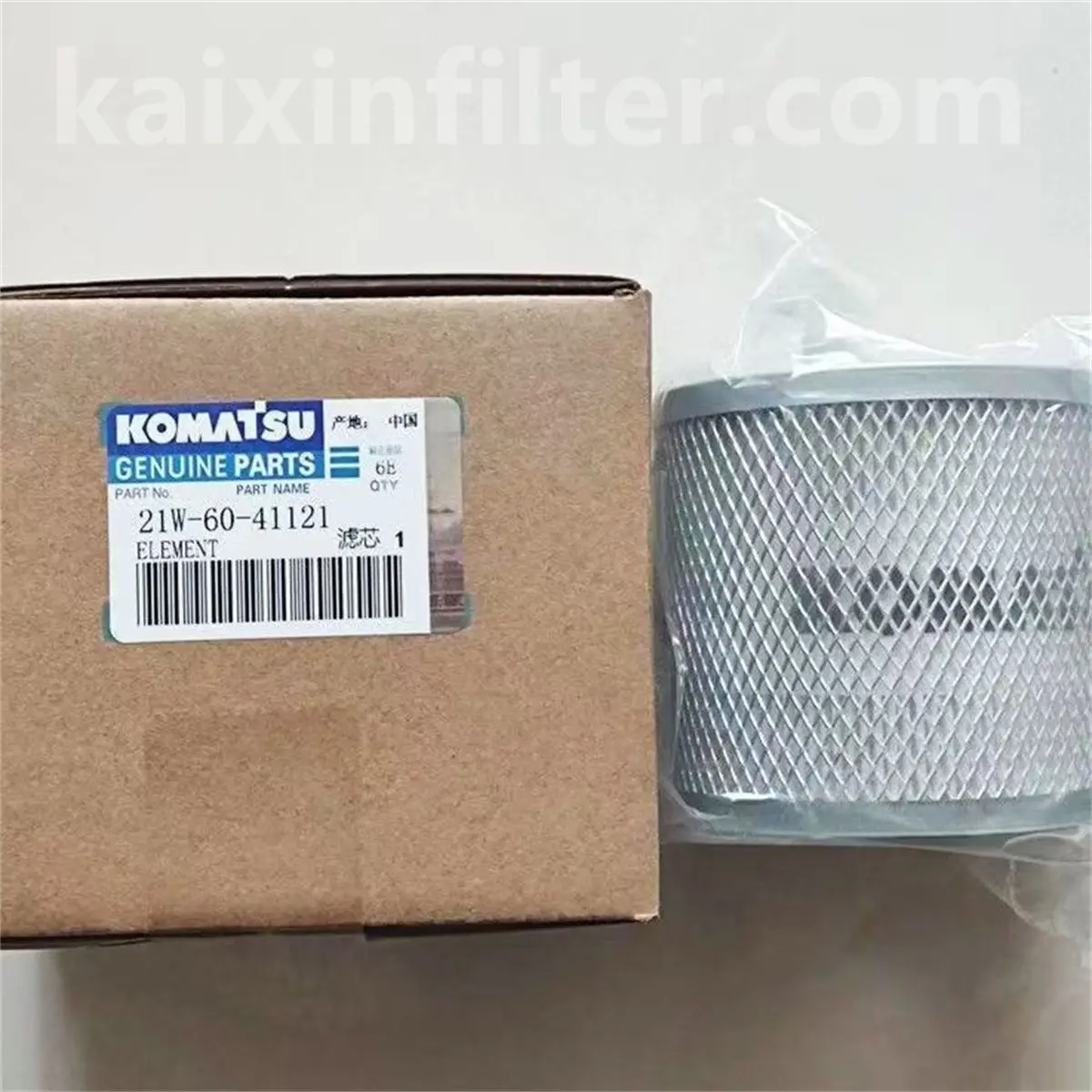

1. Working Principle of 21W6041121 Komatsu Hydraulic Filter
The 21W6041121 hydraulic filter is specially designed for KOMATSU construction machinery hydraulic circuits. It is compatible with multiple KOMATSU models, including D61 E/PX 15D, D61 EX 15D, D61 EX 23D, D61 EXI 23D, D61 PX 15D, D61 PX 15 E0D, D61 PX 23D, D61 PX-24D, D61 PXI 23, PC 45 MR-3, PC 50 MR-2, PC 55 MR 3, PC 55 MR 5, PC 78 MR-6, PC 78 US-6, PC 88 MR-8, PW 118 MR-8, PW 98 MR-8. Essentially, it uses a multi-level physical filtration structure and pressure safety components to ensure hydraulic oil cleanliness and stable machine operation. Moreover, it fits the full hydraulic oil circuit cycle of these KOMATSU small excavators and bulldozers.
1.1 Multi-Stage Purification Process
During hydraulic system operation, hydraulic oil carries metal debris, dust particles, colloidal impurities and tiny pollutants. Consequently, it flows into the outer cavity of the 21W6041121 filter along the pipeline.
The outer protective grid first performs rough filtration. Specifically, it quickly intercepts large blocky impurities. This, in turn, prevents internal fine filter material from being scratched by hard particles and extends the filter’s overall service life.
Pre-treated oil then penetrates the core composite filter layer. The 21W6041121 uses a dense multi-layer composite glass fiber structure. For instance, it locks fine suspended impurities through three purification methods: interception and adsorption, inertial collision, and microporous penetration.
Large solid particles get blocked directly by the filter material’s surface micropores. Meanwhile, medium particles attach to the fiber structure when they collide with it along with the oil flow.
Ultra-fine dust adheres firmly to the filter material fibers through molecular diffusion. As a result, this comprehensively purifies pollutants in the hydraulic oil.
Purified clean hydraulic oil converges to the filter’s central flow channel. It then flows back smoothly to core components like hydraulic pumps, control valves and oil cylinders. Ultimately, this ensures smooth oil circuit transmission without jamming.
1.2 Pressure Protection System Design
The 21W6041121 has a built-in intelligent pressure balance structure. Over time, long-term use causes impurities to accumulate, which blocks the filter.
As the filter clogs, the pressure difference between the oil circuit’s inlet and outlet gradually increases. Once it reaches the safe critical value, the built-in pressure relief protection structure opens automatically.
This allows hydraulic oil to flow directly around the filter layer. In turn, it eliminates faults like oil circuit pressure build-up and oil supply interruption.
The structure protects the entire hydraulic equipment from damage due to filter blockage. Therefore, it is ideal for high-frequency, high-intensity construction site environments. Additionally, it also works well as a 21W6041121 high precision hydraulic line filter for construction machinery.
2. Step-by-Step Replacement Checklist for Komatsu 21W6041121 Filter
Proper replacement of the 21W6041121 hydraulic oil filter replacement part is crucial. After all, it maintains the hydraulic system’s normal operation. Below is a practical, step-by-step guide.
2.1 Pre-Replacement Preparation
First, shut down the construction machinery’s engine. Then, let the hydraulic oil cool naturally for 15-20 minutes. After that, slowly loosen the hydraulic oil tank’s exhaust port to release internal pressure.
Only start disassembly after confirming the oil circuit is fully depressurized. Otherwise, it may prevent safety hazards from high-pressure oil injection.
Next, clean the area around the 21W6041121 filter base. Specifically, wipe away oil stains, dust and gravel. This, in turn, avoids debris falling into the oil circuit during disassembly and causing secondary pollution.
2.2 Old Filter Removal
Use a special filter wrench to unscrew the old 21W6041121 filter counterclockwise. Then, take it down gently. Afterward, check the base’s sealing contact surface for scratches, deformation or residual colloidal dirt.
If any issues are found, clean and polish the surface in time.
2.3 New Filter Installation
Take out the new 21W6041121 filter part. Then, apply a thin layer of clean hydraulic oil to the top rubber sealing gasket. Importantly, do not use butter instead, as it may cause chemical corrosion and affect sealing.
Manually rotate the 21W6041121 filter clockwise. Stop when the gasket fits the base completely without gaps. Then, use a wrench to tighten it an additional 3/4 turn.
Control the torque properly. For example, over-tightening may crack the sealing structure, while under-tightening can cause oil leakage.
2.4 Post-Installation Inspection
Start the equipment and let it run at idle speed for 3-5 minutes. Then, observe the 21W6041121 filter base interface for oil seepage or leakage.
Additionally, check the instrument panel’s pressure value to ensure it is stable. Finally, confirm there is no abnormal load in the oil circuit cycle.
2.5 Daily Maintenance Tips
Regularly check the equipment’s pressure difference prompt during daily operation. For example, in harsh conditions with much dust and muddy water, shorten the inspection interval.
Replace the 21W6041121 filter for construction machinery hydraulic systems in time based on pollution levels. As a result, this maintains long-term clean operation of the hydraulic system.
3. Adaptation and Usage Points Komatsu 21W6041121 Hydraulic Filter
The 21W6041121 hydraulic filter fits the hydraulic oil circuit modification and replacement needs of various KOMATSU small construction machinery. Specifically, it is fully compatible with KOMATSU models such as D61 E/PX 15D, D61 EX 15D, D61 EX 23D, D61 EXI 23D, D61 PX 15D, D61 PX 15 E0D, D61 PX 23D, D61 PX-24D, D61 PXI 23, PC 45 MR-3, PC 50 MR-2, PC 55 MR 3, PC 55 MR 5, PC 78 MR-6, PC 78 US-6, PC 88 MR-8, PW 118 MR-8, PW 98 MR-8. Specifically, it focuses on two key functions: oil circuit impurity filtration and pressure protection.
It is a high-quality 21W6041121 pressure protection hydraulic filter element. Moreover, regular, compliant replacement of this filter reduces common faults.
These faults include hydraulic valve core jamming, oil pump wear and oil cylinder internal leakage. Furthermore, it also greatly lowers equipment maintenance costs and extends the service life of the entire hydraulic accessory set.
Additionally, it works perfectly as a 21W6041121 hydraulic filter for KOMATSU mini excavators and bulldozers, including all the aforementioned compatible models, ensuring stable performance and long service life for each applicable KOMATSU machine.
