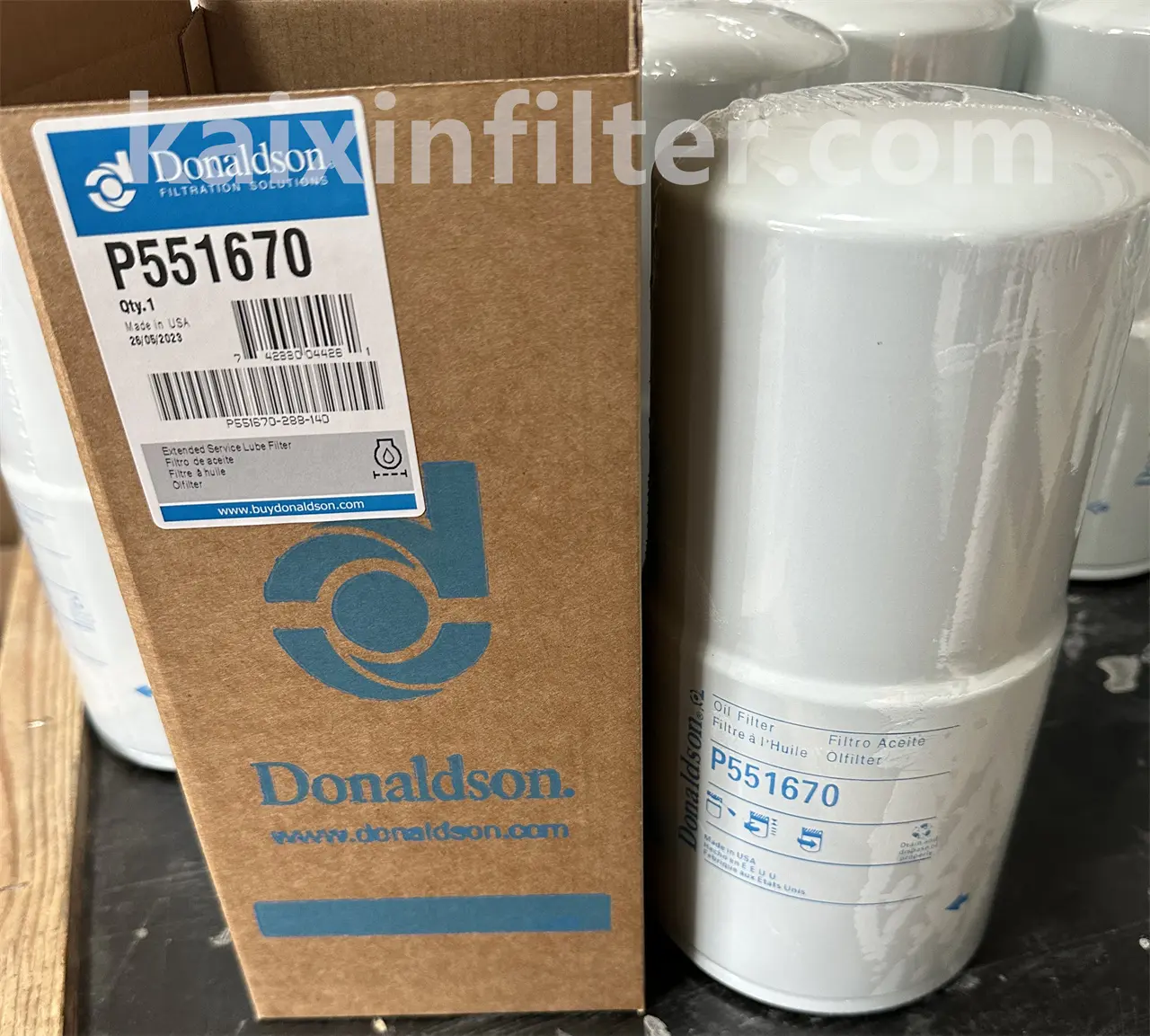

P551670 Donaldson Oil Filter: Working Principle & Full Guide
First and foremost, the P551670 is a high-quality aftermarket oil filter engineered to match Donaldson’s performance standards for heavy-duty engines. Moreover, thisP551670 replacement oil filter delivers reliable lubrication system protection across construction, mining and industrial equipment. In addition, it serves as a cost-effective P551670 Donaldson oil filter cartridge for fleet maintenance teams and repair workshops, without relying on original factory parts. Therefore, this guide details its core specifications, working principle, and full compatibility to help users understand its functionality and application scenarios. Meanwhile, it provides practical maintenance tips to extend the filter’s service life and ensure engine safety.
Core Technical Specifications (P551670)
To begin with, precise dimensions and strict performance standards ensure seamless installation and stable operation in compatible filter housings. Furthermore, every parameter of this P551670 aftermarket oil filter meets industry norms, making it a direct drop-in replacement for the original Donaldson part:
-
Outer Diameter: 118 mm (4.65 inch)
-
Inner Diameter: 98 mm (3.86 inch) (Gasket ID)
-
Gasket OD: 110 mm (4.33 inch)
-
Overall Length: 260 mm (10.24 inch)
-
Filtration Efficiency: 99% at 21 micron (tested to SAE J1858 standard)
-
Thread Size: 1 1/2-12 UN
-
Filter Style: Spin-on, full-flow
-
Media Type: Cellulose
-
Burst Pressure: 10.3 bar (149 psi)
-
Weight: 1.25 kg (2.7 lb)
Besides, its spin-on design allows for quick and tool-free installation, which saves valuable maintenance time on busy job sites. As a result, this P551670 full-flow oil filter is widely favored by maintenance teams for its convenience and reliability.
Working Principle of P551670 Donaldson Oil Filter
In general, engine oil is the lifeblood of heavy-duty machinery, and a high-performance oil filter is crucial for keeping oil clean and protecting engine components. Additionally, the P551670 high-efficiency oil filter adopts a full-flow, pressure-driven filtration design, combining multi-stage impurity trapping and reliable structural support to ensure optimal engine protection. Unlike low-quality filters, it maintains stable filtration efficiency even under high pressure and harsh operating conditions, effectively extending engine service life.
Oil Circulation & Filtration Flow Path
At first, contaminated engine oil is pumped from the oil pan into the filter housing under system pressure. Next, the oil flows from the outside inward through the spin-on filter’s outer casing, entering the pleated cellulose media layer. Then, large impurities such as metal shavings, rust, and dust are immediately intercepted on the surface of the media. After that, finer particles (down to 21 microns) are trapped deep within the multi-layer cellulose structure, achieving 99% filtration efficiency. Finally, purified oil passes through the central core tube and flows back into the engine, lubricating critical components such as crankshafts, camshafts, and bearings.
Multi-Stage Impurity Filtration Mechanism
On one hand, the P551670 uses surface interception to block large debris, preventing them from entering the engine and causing abrasive wear. On the other hand, its depth filtration technology traps tiny particles within the cellulose media, ensuring that even minute contaminants are removed from the oil. For this reason, the filter maintains consistent oil cleanliness, which is essential for protecting precision engine parts. What is more, the cellulose media has excellent dirt-holding capacity, which extends the filter’s service interval and reduces replacement frequency. Consequently, it lowers overall maintenance costs for fleet owners and equipment operators.
Structural Stability & Pressure Resistance
Even though heavy-duty engines operate under high pressure and frequent vibration, the P551670 heavy-duty oil filter maintains strong structural stability. Hence, its reinforced outer casing and internal support cage prevent media collapse, even when the system pressure reaches 10.3 bar (149 psi). Also, the filter features a high-quality Buna seal (gasket) that ensures a tight, leak-free fit, avoiding oil bypass and maintaining full filtration efficiency throughout its service life. Additionally, its spin-on design simplifies installation and removal, making it easy to replace during routine maintenance.
Cross Reference & Equipment Compatibility
Apart from being a direct replacement for Donaldson P551670, this filter is also cross-compatible with multiple OEM part numbers from other brands. Similarly, it fits a wide range of heavy-duty engines and equipment, making it a versatile choice for maintenance teams:
Cross Reference Part Numbers
-
Cummins: 3313279, 298670
-
Fleetguard: LF670, LF3333
-
Baldwin: B96
-
Liebherr: 7363165
-
Daewoo: 65.05510-5017S
-
Caterpillar: 773899
-
Fiat: 1831113
-
Ford: 1582092
P551670 Donaldson oil filter Applicable Equipment Models
-
Terex: 2566, 3066, 3360, TR100
-
Volvo: L190B, L270, L280C, L320
-
Cummins: Engines compatible with part 3313279
-
Grove: 9414100482
-
Hitachi: 1930741
-
Isuzu: 132402290
It works well as a P551670 industrial oil filter and P551670 construction equipment oil filter, providing reliable protection for engines in construction, mining, and agricultural applications.
Key Advantages & Maintenance Tips P551670 Donaldson oil filter
Above all, this aftermarket P551670 filter offers stable performance at a fraction of the cost of original parts. Firstly, its 99% filtration efficiency at 21 microns effectively protects precision engine components from wear and damage. Thirdly, its spin-on style and standard dimensions enable easy, tool-free installation, saving maintenance time. In addition, the high dirt-holding capacity extends service intervals, further lowering operational costs. In conclusion, it is a practical and cost-effective choice for long-term fleet and equipment maintenance.
terms of maintenance, it is recommended to follow the equipment manufacturer’s service interval. For most heavy-duty engines, replace the P551670 replacement oil filter every 500-1000 operating hours, or as specified in the equipment manual. Also, check the filter for leaks after installation to ensure a tight seal. Additionally, monitor the engine oil pressure regularly; if pressure drops significantly, replace the filter immediately to avoid engine damage.
