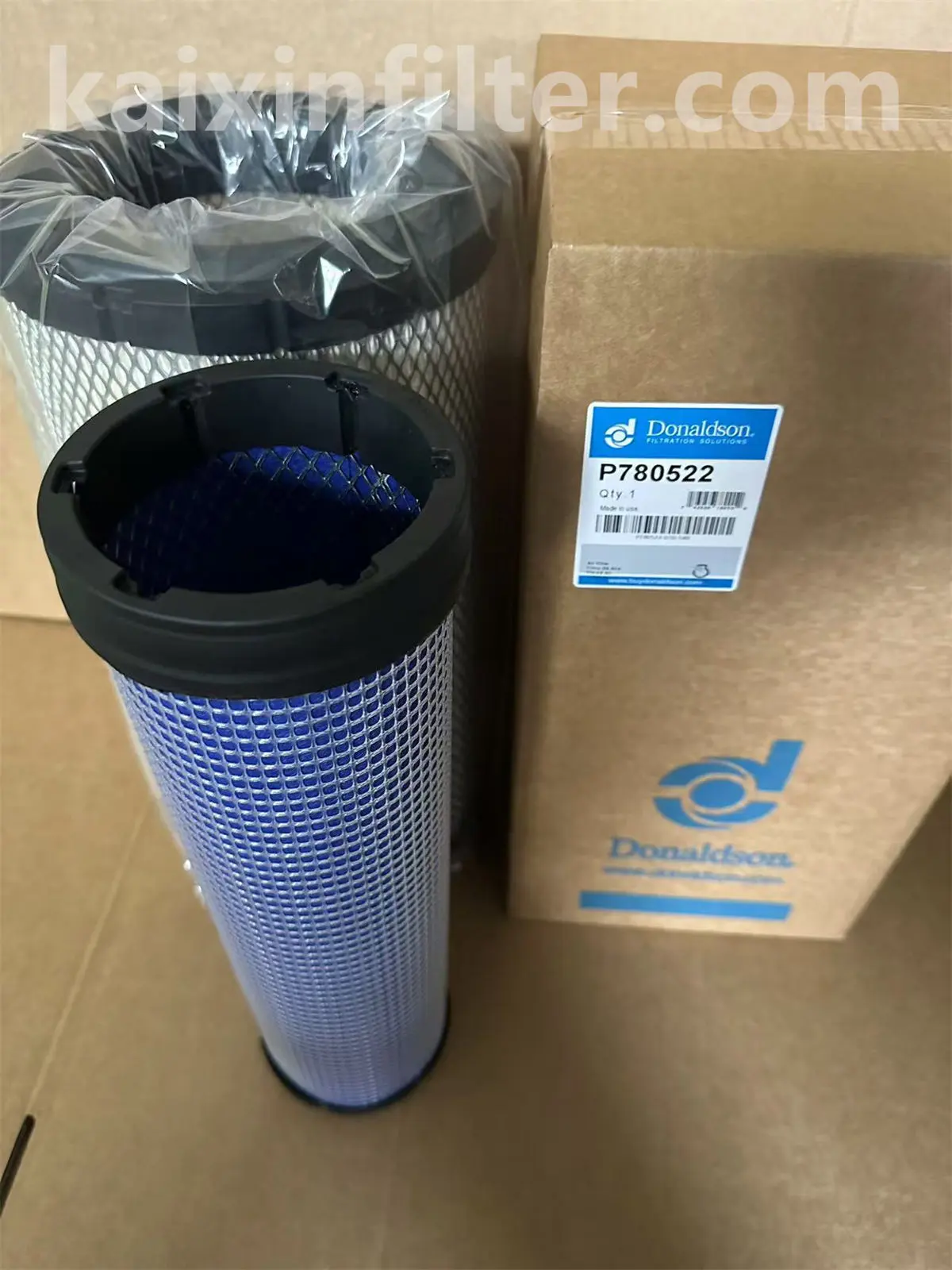

1. Core Design Highlights of P780522 Donaldson Air Filter
The Donaldson P780522 air filter stands out from standard models with its targeted focus on anti-clogging performance and extended service life. This filter is specially built for high-dust surroundings such as mining sites and construction areas, so every structural detail supports stable operation in harsh conditions. First of all, its core design aims to expand effective filtration area, reduce intake resistance, and improve dust discharge efficiency. Besides these goals, this thoughtful layout also makes the P780522 highly competitive for heavy-duty use in dusty working environments.
This air filter adopts an integrated spin-on structure, which allows users to complete replacement in a short time without professional tools. In addition, its size matches the intake systems of most heavy-duty machinery, ensuring broad compatibility without extra modification. It also applies high-density composite fiber filter media with specialized impregnation processing. This treatment not only strengthens the ability to capture dust particles but also stops media moisture absorption and shape distortion, thus effectively prolonging its usable life. What is more, it features a unique dust guide structure that regulates the flow of dust-laden air. This orderly airflow reduces direct dust accumulation on the media surface and further lowers the risk of early clogging.
2. Triple Purification Mechanism: Complete Process from Coarse Dust Separation to Fine Filtration
Unlike ordinary air filters that rely on single-layer filtration, the P780522 uses a layered purification system to deliver consistent performance. Through a three-stage purification process, it achieves high-efficiency dust removal while greatly lengthening the filter’s service cycle. To be specific, the entire working procedure can be divided into three clear steps as follows.
Stage 1: Pre-separation and Diversion – Coarse Dust is Discharged First to Avoid Filter Clogging
Dust-filled air first enters the shell of the P780522 and then passes through built-in guide vanes. These vanes drive the air to rotate rapidly, and strong centrifugal force pushes coarse dust particles of 15μm and above toward the inner wall of the shell. Such particles include gravel, large debris, and coarse sand, which never come into contact with the filter media. Instead, these impurities slide into the dust collection chamber at the bottom, realizing the principle of separating and discharging large particles in advance. This single stage removes roughly 80% of coarse dust, which significantly eases the pressure for later fine filtration. More importantly, it serves as a critical step in maintaining the anti-clogging performance of the P780522 during long-term operation.
Stage 2: Fine Filtration Interception – Thorough Removal of Fine Dust
After pre-separation, the air moves toward the core filter media of the P780522. This component uses specially treated composite fiber media with dense micro-pores and optimized pleating design. In fact, its effective filtration area exceeds that of flat media by more than 10 times, providing ample space for dust capture. As air penetrates the media, the interwoven fiber structure traps fine dust particles below 15μm step by step, including fine sand, smoke dust, and tiny pollutants. Larger fine particles are blocked on the media surface, while extremely small ones attach to internal micro-pores. As a result, the filter reaches a filtration efficiency of over 99.6%.
At the same time, it maintains low intake resistance to support smooth air supply for equipment. This stable airflow also avoids negative effects on engine power output. For these reasons, the P780522 becomes an ideal choice for various heavy-duty engineering vehicles.
Stage 3: Self-Cleaning Assistance – Delay Filter Clogging P780522 Donaldson air filter
The P780522 is equipped with a simple yet efficient self-cleaning auxiliary structure that cooperates with the dust collection chamber. During equipment operation, periodic pulse airflow generated by air intake shakes loose coarse dust stored in the chamber. Furthermore, the bottom of the chamber supports manual or automatic dust discharge. Regular dust removal effectively delays clogging progress and extends the replacement cycle of the P780522 air filter.
3. Auxiliary Role of Key Structures: Ensure Filtration Stability and Equipment Safety
In addition to the triple purification mechanism, multiple auxiliary structures of the P780522 maintain continuous and stable filtration performance. These designs also prevent filtration failure caused by structural weaknesses under harsh working conditions. The key structural components are listed below.
-
Sealing Protection Structure: High-elasticity and temperature-resistant gaskets create a tight connection between the filter and the housing. The gap-free fitting blocks unfiltered dusty air from bypassing the media, so impurities cannot enter the engine directly. This protection effectively reduces wear on precision parts such as engine cylinders and pistons.
-
Filter Media Support Structure: A built-in high-strength plastic support frame reinforces the filter media. It resists continuous negative pressure and mechanical vibration during operation, preventing media deformation or collapse. By keeping the media in its original effective shape, it avoids filtration failure caused by media damage.
-
It adapts to high-temperature operation, humid environments, and cold weather conditions without deformation or aging. This design guarantees reliable filtration performance no matter how harsh the external environment is.
4. Core Value and Adaptation Scenarios of Donaldson P780522 Air Filter
Users who choose the P780522 air filter mainly focus on three core advantages: efficient purification, long-lasting anti-clogging function, and easy maintenance. This filter is widely compatible with most heavy-duty engineering vehicles, mining machinery, and commercial vehicles without complex modification. It performs best in high-dust areas and long-hour continuous working scenarios.
The triple purification system completely removes harmful dust from intake air, reducing engine internal wear and carbon deposition. It also helps improve fuel efficiency and reduce operating costs. Meanwhile, the anti-clogging design reduces the frequency of filter replacement, which cuts maintenance expenses and equipment downtime. Moreover, the spin-on structure simplifies installation and replacement, fully meeting the needs of on-site equipment maintenance. All these benefits make the P780522 the preferred intake protection solution for heavy-duty equipment.
