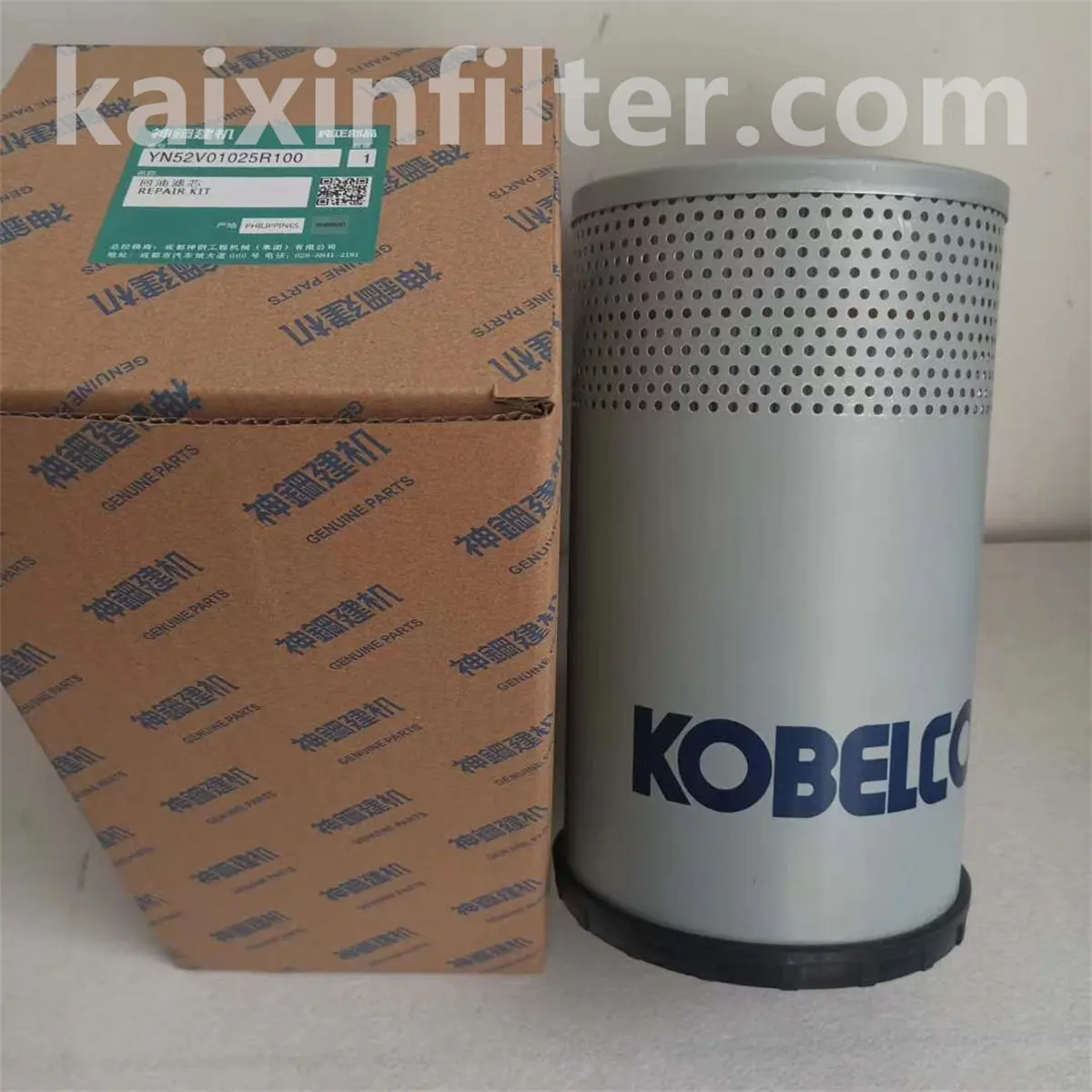

YN52V01025R100 Kobelco Filter (Return Oil Type) Working Principle
The YN52V01025R100 Kobelco filter is a deep filtration return oil filter for Kobelco excavators, including SK200-10, SK250-10, and SK260-10. As a key replacement part for Kobelco hydraulic systems, this YN52V01025R100 return oil filter uses multi-layer composite filter media to achieve outside-in oil flow, gradient interception, and deep particle capture. There is no bypass design, so all return oil must pass through its filter media. This thorough purification is crucial for Kobelco excavator hydraulic system performance. Additionally, it works seamlessly with Kobelco hydraulic components, ensuring optimal compatibility for heavy-duty construction tasks. Furthermore, this YN52V01025R100 filter is engineered to withstand harsh construction site conditions, making it a reliable choice for Kobelco excavator maintenance.
Oil Flow Direction and Structural Path
System return oil pressure drives hydraulic oil radially from the outside of the YN52V01025R100 filter. First, the oil contacts its outer coarse filter layer, which acts as the first line of defense against large impurities. Then, it penetrates the middle fine filter layer to remove smaller particles. Finally, it flows axially out of the central inner tube to complete closed-loop purification. This flow design ensures full contact between oil and filter media. Moreover, it maximizes filtration efficiency while minimizing flow resistance. Besides, the filter’s structure includes an outer protective mesh, a gradient composite filter media layer, a central support framework, and sealed end caps. These components work together to ensure stable operation. Also, the absence of a bypass valve guarantees that no unfiltered oil enters the hydraulic system.
The YN52V01025R100 filter’s structural design prioritizes durability and practicality. Its outer protective mesh prevents physical damage to the internal filter media. The central support framework maintains the filter’s shape under high oil pressure. The sealed end caps prevent oil leakage, ensuring the hydraulic system’s tightness. Additionally, its compact structure makes it easy to install and replace on Kobelco SK series excavators. Furthermore, this YN52V01025R100 return oil filter is lightweight yet sturdy, adapting to the frequent movement of excavators on construction sites. Even in high-vibration environments, it remains stable and effective.
Four-Layer Filtration Mechanism (Original Process)
Coarse Particle Interception (Outer Layer)
The YN52V01025R100 filter’s outer layer combines a metal mesh and coarse fiber material. This outer layer directly blocks particles larger than 20μm, such as metal debris, welding slag, and rubber particles. This prevents large impurities from impacting the inner filter media. As a result, it extends the service life of the main filter layer. Additionally, the coarse filter layer is easy to clean, reducing maintenance frequency. Moreover, it effectively reduces the load on the inner fine filter layer, ensuring long-term filtration stability. Also, it adapts to the dusty environment of construction sites, capturing large debris before they enter the inner layers.
Inertial Collision Capture (Middle Layer)
Hydraulic oil passes through the coarse filter layer of the YN52V01025R100 filter and flows into the middle porous fiber layer at high speed. Particles of 5–20μm deviate from the oil flow due to inertia. They collide with the fiber gaps and become embedded there. The filter mechanically locks these particles in place, preventing them from re-entering the oil flow. This layer acts as a transition between coarse and fine filtration. Furthermore, it reduces the load on the inner fine filter, improving overall filtration efficiency. Besides, it ensures that medium-sized particles are fully captured, avoiding clogging of the fine filter layer. Also, the porous structure of the fiber layer allows for smooth oil flow without excessive resistance.
Deep Diffusion Adsorption (Inner Layer)
The inner layer of the YN52V01025R100 filter is a high-precision glass fiber layer with a rated accuracy of 6μm. This inner layer uses Brownian motion to capture particles smaller than 5μm, such as fine metal powder and colloid. Its filter media’s surface charge adsorbs polar pollutants like sludge and gum. This achieves sub-micron level purification of hydraulic oil. Additionally, the glass fiber layer is highly porous, ensuring low flow resistance. It also maintains high filtration accuracy, meeting the strict requirements of Kobelco hydraulic systems. Moreover, it prevents fine particles from entering the main pump and control valve, protecting key hydraulic components. Furthermore, the filter media is resistant to oil and high temperatures, adapting to the harsh working conditions of excavators.
Pressure Difference Alarm and Replacement Trigger
When the YN52V01025R100 filter becomes clogged, the pressure difference between the inlet and outlet increases. The system’s pressure difference switch detects this change and triggers an alarm. This prompts operators to replace the filter in a timely manner. Failure to replace it promptly can lead to poor oil return and abnormal system pressure. It may even cause damage to the Kobelco excavator’s hydraulic pump and control valve. Additionally, regular replacement ensures stable hydraulic system operation. Moreover, the alarm function helps reduce unplanned downtime, improving construction efficiency. Also, the YN52V01025R100 filter’s replacement process is simple, requiring no special tools, which saves maintenance time.
Core Functions
The YN52V01025R100 filter removes solid particles, metal debris, and oxidized sludge from hydraulic oil. It protects precision components such as the main pump, control valve, and oil cylinder. This reduces wear and jamming of hydraulic components, extending their service life. Additionally, it maintains the cleanliness of hydraulic oil, prolonging the oil’s service life. Furthermore, this YN52V01025R100 return oil filter ensures stable power output of the Kobelco excavator, improving work efficiency. Besides, it reduces the failure rate of the hydraulic system, lowering maintenance costs for users. Also, it adapts to various harsh working conditions, including high dust, high temperature, and high vibration.
By maintaining hydraulic oil cleanliness, the YN52V01025R100 filter reduces the risk of hydraulic system failures. It ensures the smooth operation of Kobelco SK200-10, SK250-10, and SK260-10 excavators. This is particularly important for heavy-duty construction tasks that require continuous operation. Additionally, it enhances the overall reliability of the excavator, minimizing downtime. Moreover, this YN52V01025R100 Kobelco filter is a cost-effective replacement part, providing long-term value for Kobelco excavator users. Furthermore, its compatibility with Kobelco hydraulic systems ensures easy installation and replacement.
YN52V01025R100 Kobelco Hydraulic Filter – Suitable for Kobelco SK Series Excavators
The YN52V01025R100 Kobelco hydraulic filter is specifically tailored for Kobelco SK200-10, SK250-10, and SK260-10 excavators. It perfectly matches the hydraulic return system of these models, ensuring seamless compatibility. Its deep filtration capability effectively protects the excavator’s hydraulic components from damage. Additionally, this YN52V01025R100 filter is designed to withstand the harsh working conditions of construction sites, making it a reliable replacement part. Moreover, it is easy to install and maintain, reducing the workload of maintenance personnel. Also, it provides long-term stable filtration performance, ensuring the excavator’s hydraulic system operates efficiently.
YN52V01025R100 Kobelco Hydraulic Filter – High-Precision Filtration for Hydraulic System Protection
With its four-layer gradient filtration mechanism, the YN52V01025R100 Kobelco hydraulic filter achieves high-precision purification of hydraulic oil. It captures particles of all sizes, from large debris to sub-micron fine particles. This ensures the hydraulic oil meets the strict cleanliness requirements of Kobelco hydraulic systems. Additionally, this YN52V01025R100 filter prevents impurities from causing wear to precision components, extending the service life of the hydraulic system. Moreover, it maintains stable oil flow and pressure, ensuring the excavator’s power output is consistent. Furthermore, it is a cost-effective solution for Kobelco excavator maintenance, reducing long-term operational costs.
YN52V01025R100 Kobelco Hydraulic Filter – Replacement Part for Kobelco Excavator Hydraulic Return System
As a professional replacement part for Kobelco excavator hydraulic return systems, the YN52V01025R100 Kobelco hydraulic filter meets the original equipment standards. It is durable, efficient, and compatible with Kobelco SK series excavators. Its compact design makes it easy to install and replace, saving maintenance time. Additionally, this YN52V01025R100 filter provides reliable filtration protection, ensuring the hydraulic system operates stably. Moreover, it is resistant to harsh working conditions, making it suitable for long-term use in construction sites. Choosing the YN52V01025R100 ensures the hydraulic system’s reliability and reduces the risk of equipment failure.
