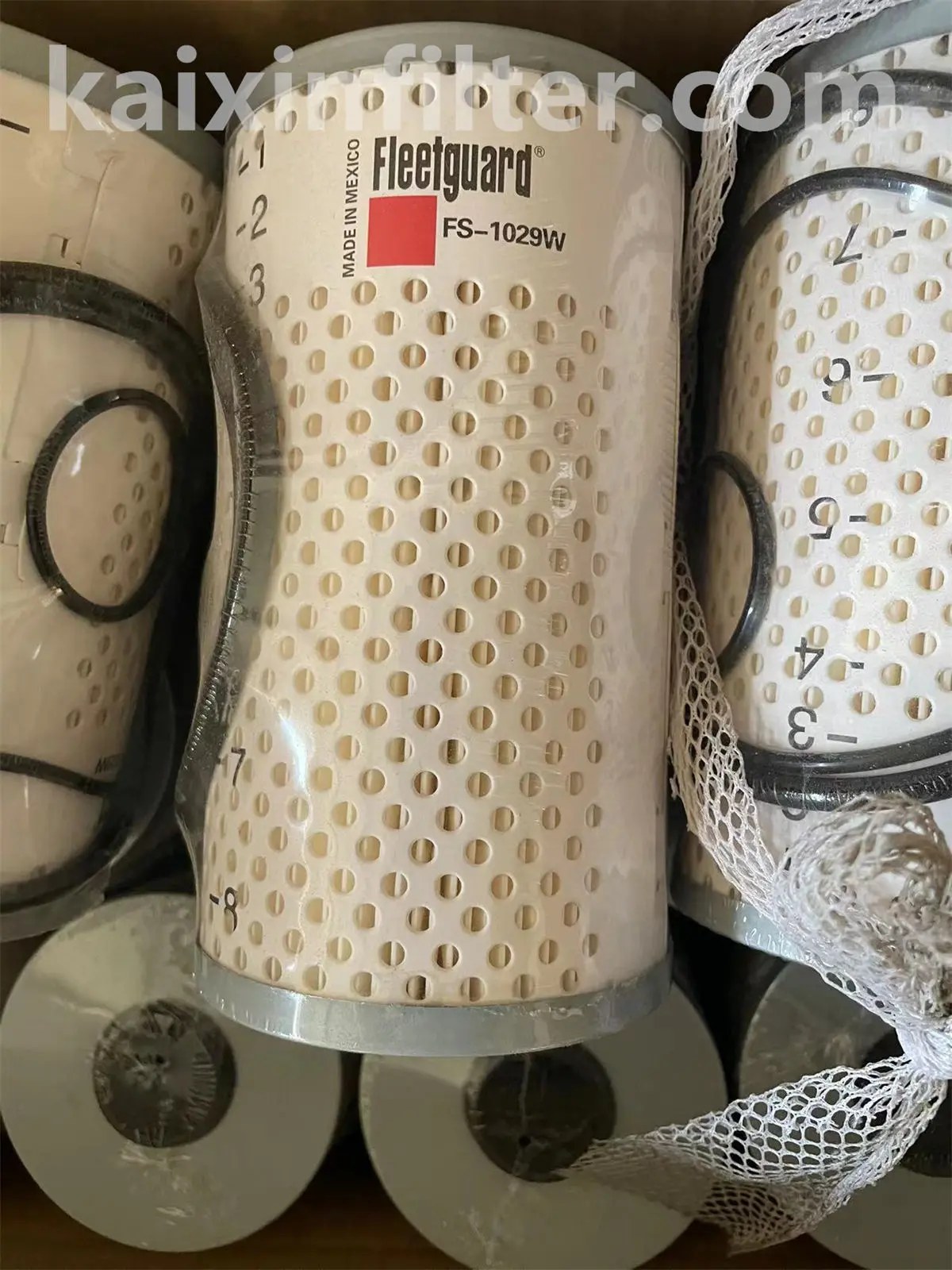

FS1029W Fleetguard Filter Efficiency & Core Performance Indicators
FS1029W Fleetguard achieves 99% filtration efficiency at 12 microns. Additionally, it reaches 95% efficiency for emulsified water separation. Moreover, its initial pressure difference is ≤0.02MPa, ensuring stable fuel supply under full load.
The filter’s dirt-holding capacity hits 18g, thereby extending replacement cycles. Furthermore, it maintains stable performance within -40℃ to 120℃, adapting to harsh working environments. Besides, its flow efficiency reaches 80L/min, meeting high-demand fuel supply needs.
Key Material Specifications
FS1029W uses glass fiber filter media with 180g/㎡ density. Additionally, this material enhances particle interception and extends service life. Moreover, its skeleton adopts cold-rolled steel with 1.2mm thickness, boosting structural strength.
The seal uses nitrile rubber with 70±5 Shore hardness. Furthermore, it resists oil and high temperatures, preventing fuel leakage. Besides, the end cap adopts PP material, ensuring tight fit with filter housing.
Adaptable Equipment Models
FS1029W fits FREIGHTLINER 120, 120SD, and 132SD models. Additionally, it also matches KENWORTH T600B, T600C, and T660 heavy-duty trucks.
Additionally, it adapts to VOLVO VHD 2009, VHD 2010, and VHD 2011. Furthermore, it also fits MACK CH series heavy-duty trucks, ensuring broad compatibility across multiple brands. Moreover, it matches FREIGHTLINER CENTURY CLASS (CUMMINS ISM) models, covering more on-highway heavy-duty vehicles.
FS1029W Fleetguard Fuel/Water Separator Filter Cross Reference Part Numbers
FS1029W has multiple compatible cross reference part numbers across different brands. Specifically, Sandvik offers 4521197 as a direct equivalent. Besides, Mack provides 5839FS19727, 5839FF5369W, 3076CS7772B, 5839FS1029W, 3076CS7772A, 45MB411A, 301SD19, 301SD19A, 85136715 as compatible replacements.
Furthermore, International supplies 2503566C1 and 1696265C1 for direct substitution. Also, Mci offers 9051272, while Davco provides 301SD19D and 382122 as compatible alternatives. Besides, Arctic Fox’s A6732P110, Atlas Copco’s 5541449300, and Detroit Diesel’s 23514049, 23521528, 23529664 also match FS1029W. Moreover, Tamrock’s 69032924 and 4521197, IHC’s 1696265C1, 2503565C1, 2503566C1, and General Motors’ 23514049 are also cross-compatible.
Tamrock’s 69032924 and 4521197, IHC’s 1696265C1, 2503565C1, 2503566C1, and General Motors’ 23514049 are also cross-compatible. Besides, Volvo’s 85105574, 85114042, 3919762, VOE85105574 are valid alternatives for FS1029W. Moreover, all these cross-reference parts meet the same performance standards as FS1029W.
FS1029W Fleetguard Dimension Specifications
FS1029W features precise dimensions to ensure perfect fit with OEM housing. Additionally, its outer diameter is 97 mm (3.82 inch), and inner diameter is 16.8 mm (0.66 inch). Moreover, the overall length of the filter is 171.2 mm (6.74 inch), with a thread specification of M20×1.5 for secure installation.
